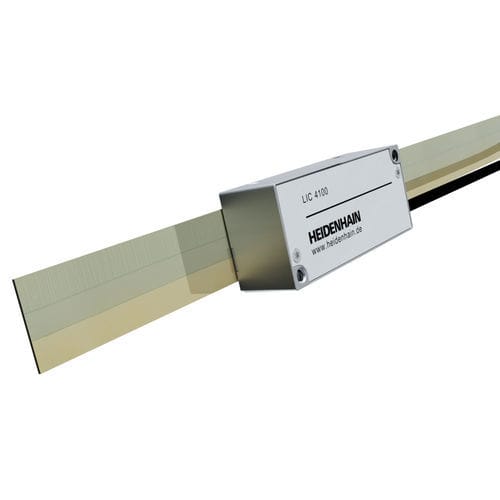

Absolute linear encoder LIC 4100

mechanicalFanuc αstandard

Absolute linear encoder with high accuracy For linear axes with high traversing speeds Measuring lengths of up to 28 m Version with very small measuring step (<1 nm) High-vacuum versions available Functional safety versions available Different mounting options Interfaces: EnDat, Fanuc, Mitsubishi, Panasonic, and Yaskawa Functional safety Certain encoders of this series are available with functional safety and a safe mechanical connection. When integrated into a system, this solution for applications with up to SIL 2 minimizes malfunctions and enables safe machine operation. Application versatility This series can be used in a wide variety of applications. The multi-talented LIC encoders are tough and accurate, enabling high speeds and long measuring lengths. Certain versions can be used in safety-related applications or in high-vacuum applications. High traversing speeds Along with high accuracy, the LIC linear encoders feature very fast traversing speeds. Measuring steps of down to just 1 nm and traversing speeds of up to 600 m/min are possible. Position measurement is absolute and, thanks to high contamination resistance, very reliable. Long measuring lengths The linear encoders of this series come in various versions with measuring lengths of up to 28 m. These encoders deliver excellent dynamic behavior, high reliability, and consistently high accuracy across the entire measuring length. Resistant to contamination Thanks to a large scanning field, the encoders of this series are highly resistant to contamination. Localized impurities on the measuring standard have minimal effect on the signal quality and measurement reliability.
