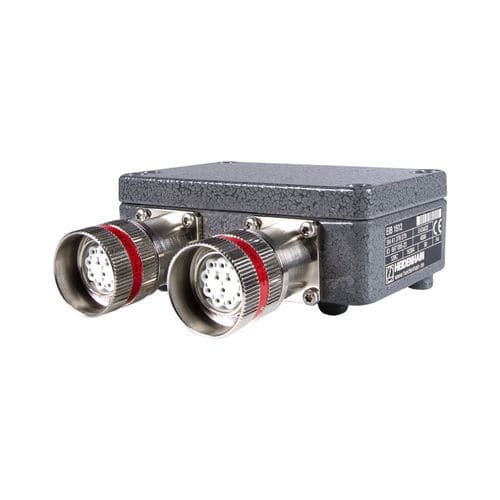

Pulse signal converter EIB 15 series

digitalincremental

Signal converters for high-accuracy angular measurement Interpolation and digitizing electronics for the real-time digital processing of positions from two scanning heads Input: incremental rotatory HEIDENHAIN encoder with two scanning heads and distance-coded reference marks (relative orientation of scanning heads: 180° ± 5°) Output: EnDat 2.2, Fanuc Serial Interface, Mitsubishi high speed serial interface Integrated subdivision: 16 384-fold Built for long-term operation Thanks to a dust-proof, water-resistant design with an IP65 rating, the EIB 1500 can handle harsh daily shopfloor conditions for reliable and failsafe position processing even in moist and dust-filled environments. Online diagnostics The online diagnostics of EnDat 2.2 are supported, outputting valuation numbers for the incremental track, reference pulse width, and reference pulse position. For insight into complete-system functionality, the lower of the two connected encoder values is always used.
