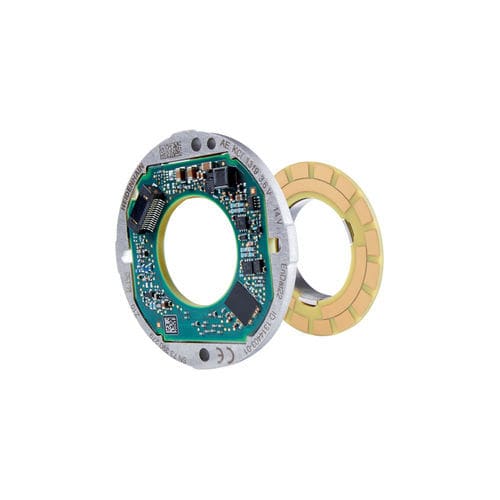

Absolute rotary encoder KCI/KBI 1300

magneticinductivemechanical

Absolute rotary encoders without integral bearing High axial tolerance of up to ±0.5 mm Hollow through shaft with Ø 25 mm Robust inductive scanning Positioning accuracy of down to ±90" 524 288 positions/rev. Multiturn functionality for up to 65 536 revolutions Maximum operating temperature: 115 °C Interface: EnDat Robust design The rotor unit is screw-fastened or press-fitted for direct coupling. This rigid design permits high vibrational loads of up to 400 m/s² on the stator and 600 m/s² on the rotor. The robust inductive scanning method is also particularly resistant to contamination and magnetic fields. Functional safety Rotary encoders of this series are available with functional safety and a functionally safe mechanical connection. Once integrated into an application with up to SIL 3 safety, they minimize malfunctions and facilitate the safe operation of machines and systems. Wide range of applications For a wide variety of applications, this series offers the right encoder, including a multiturn version with a battery-buffered revolution counter for up to 65,536 revolutions or a version with external temperature sensor support. Compact design The rotary encoders of this series feature high ruggedness and reliability in a compact design. Their small footprint makes them ideal for tight installation spaces.
