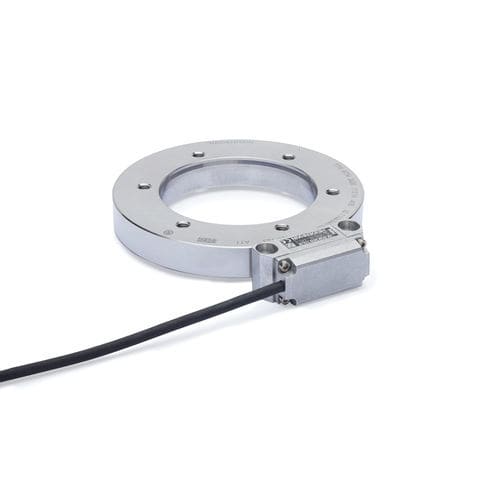

Absolute rotary encoder ECM 2400

magneticFanuc αrugged

Absolute angle encoders with magnetic scanning Easy mounting with only little adjustment work Rugged and tolerant to contamination Graduation accuracy: ±3.5” to ±8” Signal periods: 90 to 2600 Diameters: 113 mm to 327 mm Interfaces: EnDat 2.2, Fanuc, Mitsubishi Compact and versatile The ECM 2400 series angle encoders feature various drum sizes and geometries. Large inside diameters of up to 260 mm facilitate cable routing through the encoder. Their compact design permits installation in tight spaces. High permissible shaft speeds The modular bearingless design of these encoders permits high shaft speeds in continuous operation and reversing duty, even when installed with mechanical fault exclusion. These high shaft speeds do not increase the acoustic operating noise of the encoder. Sturdy and tolerant to contamination The MAGNODUR measuring standard is particularly tolerant to contamination. The resulting consistent signal quality makes these encoders suitable for harsh shopfloor conditions. Functional safety Angle encoders of the ECM 2410 series are also available with functional safety and a safe mechanical connection. Once integrated into an application with up to SIL 2 safety, they minimize malfunctions and facilitate the safe operation of machine tools.
