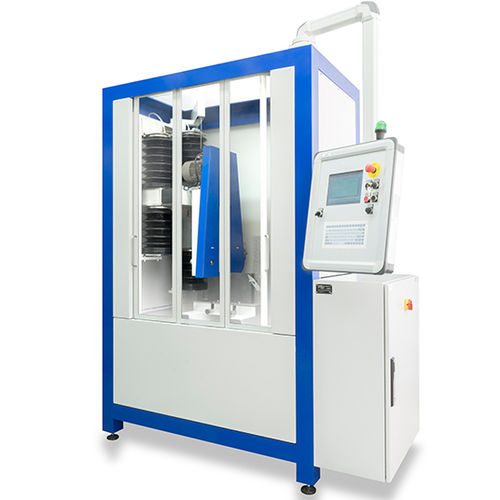

Diamond wire saw DS150 NC
for compositesfor CFRPfor FRP

diamond wire saw
diamond wire saw
diamond wire saw
diamond wire saw
diamond wire saw
Add to favorites
Compare this product


diamond wire
Treated material
for composites, for CFRP, for FRP, for graphite, for glass, for ceramics
Other characteristics
automatic, horizontal, CNC, high-accuracy, with touch screen control, machining, for laboratories, with electronically-controlled pusher system


The diamond parting-off grinder DS150 NC is a modern production machine The diamond wire saw DS150 NC is ideal for the cutting of 2D contours. Passage (HxW) is 120 x 460 mm, travel work area is 430 x 430 mm (X axis, Y axis) The diamond wire saw DS150 NC is a diamond parting-off grinder which lends itself ideally for the cutting of 2D contours. The wire unit works horizontal, therefore after cutting the workpiece remains at the starting material, it does not fall off. The linear guidings with recirculation ball bearings are covered by folding bellows. This guarantees a longevity when sawing abrasive materials. The ball screws used for the feed allow the pre-programmed contour to be followed with high precision. The process of programming the workpiece contour with external CAD programs is supported by such features as automatic tool radius correction, automatic closure of the contour and the graphic display and process simulation.
