Insulator 06135
Add to favorites
Compare this product
Description

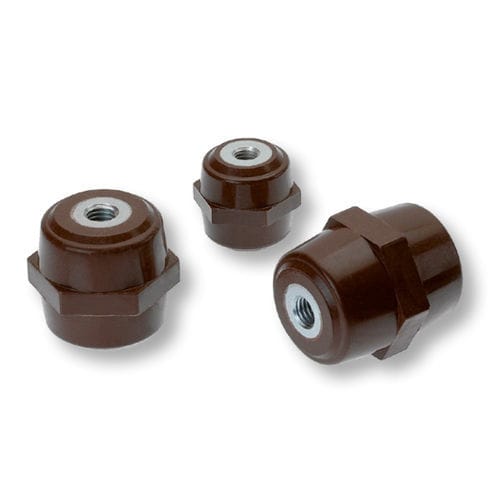

Standoff insulators
made out of polyester resin material
with spanner flat
for indoor application
Standoff insulators manufactures out of a glass fibre reinforced unsaturated
polyester resin (UPE). The characteristic of the material is in accordance
with DIN Typee 803. The compound is free of halogen with an excellent
behaviour in case of fire (UL 94 V-0) and a very good strength of shape.
Technical data of the material
Strength of shape ISO 75 > 250 °C
Behaviour in case of fire UL 94 Class V-0 by 3,2 mm
Density ISO 1183 1,75 g/cm³
Special throughout resistance IEC 60093 1012 Ohm
Dielectric strength IEC 60243 20 kV/mm
Deposit tracking IEC 60112 CTI 600
Inserts steel zinc coated
Colour brown
Temperature range - 40 °C up to +130 °C
