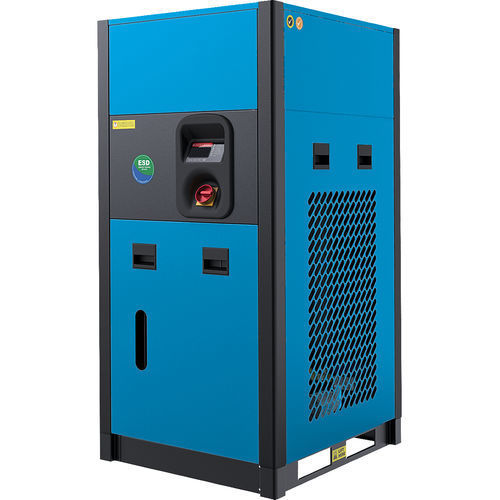

Refrigerated compressed air dryer SDC series non-cyclingthermal mass
Add to favorites
Compare this product
Characteristics
- Technology
- refrigerated
- Other characteristics
- non-cycling, thermal mass
- Capacity
Max.: 12,500 m³/h
(441,433.33 ft³/h)Min.: 495 m³/h
(17,480.76 ft³/h)- Working pressure
Max.: 16 bar
(232.06 psi)Min.: 7 bar
(101.53 psi)- Operating temperature
Max.: 65 °C
(149 °F)Min.: 35 °C
(95 °F)- Ambient temperature
Max.: 50 °C
(122 °F)Min.: 25 °C
(77 °F)
Description
Drytec Cycling Dryers cool a special liquid and store it in a cold tank at 1°C temperature. This liquid is cycled in the dryer to cool down compressed air. This technology helps the customers to consume less ENERGY when the dryer gets 5-95% air flow. Drytec Cycling dryer outperforms non-cycling or frequency driven dryers where energy consumption is concerned. All components cooling liquid mixture are either stainless steel (Tank, Pump) or Aluminium (Dryer Heat Exchanger) Therefore there is no risk of corrosion.
Example for Choosing the Correct Dryer
If an air compressor delivers 500 m³/h at 6 bar, the dryer inlet temperature is 45°C and ambient temperature is 30°C.
Please choose your dryer model as follows; 500 / 0.94 / 0.78 / 0.98 = 695 m³/h The correct dryer model for this application is SDC930
