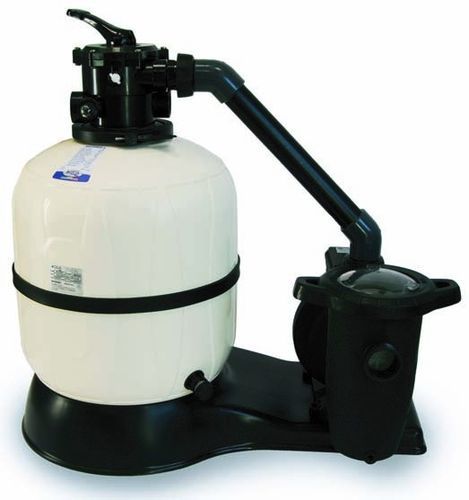

Sand filtration unit

for waterfor seawaterpolypropylene

ApplicationSuitable for freshwater and saltwater pools (residential and commercial) for standard recirculation and filtration systems.Product descriptionBody manufactured entirely from injection-moulded polypropylene with a spherical shape and candle-type distribution. Double-ring base provides stable support. Six-way valve (available TOP or SIDE) sealed by wing nut jaws; nut seat designed for tool-free operation. Sand not included.Technical featuresInjection moulded polypropylene bodyPolished and satin segmented finishCandle-type distributionDrain plug with distributionFilter drain: 3/4"Maximum pressure: 3.75 barMaximum operating temperature: 40°CSix-way valve (TOP or SIDE), sealed by wing nut jawsDouble-ring base for stabilitySand not includedAvailable optionsMax flow (m³/h): 3.5; 4.5; 7; 10; 14; 22; 35Connections (mm): 35; 50; 63Sand (kg): 17; 20; 40; 70; 75; 100; 125; 250; 450Codes: DSFCPW300; DSFCPW350; DSFCPW400; DSFCPW500; DSPL450T; DSPL530T; DSPL620T; DSPL790SD; DSPL950DSTechnical specificationsMaterial: PolypropyleneShape: SphericalDistribution: Candle-typeValve: Six-way (TOP or SIDE), sealed by wing nut jawsFilter drain: 3/4"Max pressure: 3.75 barMax operating temperature: 40°CFinish: Polished and satin segmentedManufacturing: Injection mouldedNote: Sand not included
