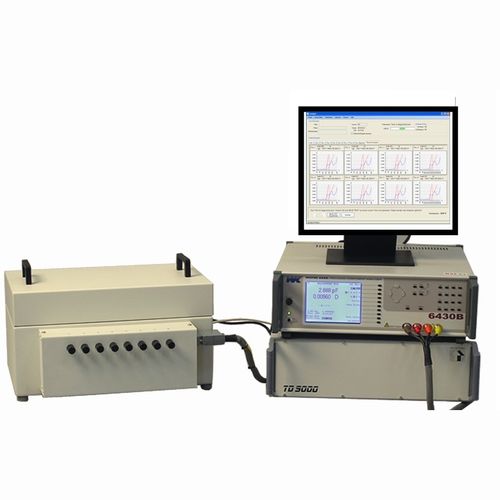

Laboratory test system TD9000

enameled wiretangent delta

TD9000 Tangent Delta Tester -The pioneer among Tangent Delta test systems The TD9000 in short form High-standard laboratory tester for achieving precise measurements Flexible measuring setup, e.g. eight samples with different dimensions can be measured simultaneousl Comparison with reference wire Multiple curves can be displayed simultaneously, which simplifies the interpretation of the result Selectable test frequencies for optimising the measurement of different types of wires All significant data stored in Microsoft SQL database Description TD9000 Tangent Delta Tester is the most advanced and accurate tool for any type of enamel or enamelled wire. With the TD9000 it is possible to analyse parameters such as curing of the enamel, residual solvent, additives, etc. These parameters are all essential for obtaining the right quality and economy. The ultimate way With this Tangent Delta method, determination of the enamel curing and residual solvents in an isolated wire is done very effectively. Preparing a sample is simple too. The wire is de-isolated and being prepared with graphite and in a special setup it is possible to measure the capacitance and the D-value.
