Oil rotary union MJ-07107

7-passagefor mobile applicationsindustrial

Overview

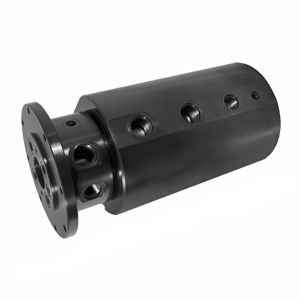

7-passage fluid rotary union designed for a mobile furnace cleaning application. Direct OEM replacement design.

Project details

• Industry: Machine Tool
• Media Type(s): Oil
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 3,600 PSI [248 BAR]
• Max. Speed: 15 RPM

Mechanical dimensions & passages

• Number of Passages: 7
• Passage Size(s): .313" [8 mm], .718" [18.2 mm], .922" [23.4 mm]
• Through Bore: 2.0" [50.8 mm]
• Diameter: 7.938" [201.6 mm]
• Length: 16.040" [407.4 mm]

Related project ranges

• # of Passages (related projects): 6 - 7 Passages
• Passage Size ranges (related): 0.250" - 0.374" [6.35 mm - 9.50 mm], 0.500" - 0.749" [12.70 mm - 19.02 mm], 0.750" - 0.999" [19.05 mm - 25.37 mm]
• Rotation Speed (RPM) (related): 0 - 24 RPM
• Pressure (PSI) (related): 200 - 6,499 PSI [14 - 448 BAR]
• Thru Bore (related): 1.0" - 2.9" [25.4 mm - 73.7 mm]

Characteristics / Technical specifications

• Model / Project: MJ-07107
• Type: 7-passage fluid rotary union (oil)
• Intended application: Mobile furnace cleaning (direct OEM replacement design)
• Materials: Carbon / Alloy Steel
• Maximum pressure: 3,600 PSI [248 BAR]
• Maximum rotational speed: 15 RPM
• Passage sizes: .313" [8 mm], .718" [18.2 mm], .922" [23.4 mm]
• Number of passages: 7
• Through bore: 2.0" [50.8 mm]
• Overall diameter: 7.938" [201.6 mm]
• Length: 16.040" [407.4 mm]
• Environment: Indoor
• Media: Oil
