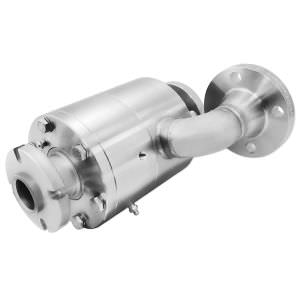

Chemical rotary union TF-10302

2-passagefor medical applicationsstainless steel

Overview
2-passage rotary joint designed for solid-liquid separation equipment in pharmaceutical applications. All-stainless-steel construction with specialized mechanical seals rated for -65 °C and low-temperature bearings. Suitable for indoor process environments handling chemical media.

Key Details

• Industry: Medical
• Media Type(s): Chemical
• Environment: Indoor
• Material: Stainless Steel
• Max. Pressure(s): 150 PSI (10 BAR)
• Max. Speed: 25 RPM

Geometry & Passages

• Number of Passages: 2
• Passage Size(s): 1.500" (38.1 mm)
• Through Bore: None
• Diameter: 5.940" (150.9 mm)
• Length: 10.770" (273.6 mm)

Related Projects

• Industry: Medical
• Number of Passages: 2
• Passage Size Range: 1.000" - 1.999" (25.40 mm - 50.77 mm)
• Rotation Speed (RPM): 25 - 99 RPM
• Pressure (PSI): 0 - 199 PSI (0 - 14 BAR)
• Media: Chemical
• Material: Stainless Steel
• Thru Bore: None
• Environment: Indoor

Related Industry

• Medical

Specifications

• Model / Project: TF-10302
• Type: 2-passage rotary joint
• Application: Solid-liquid separation equipment (pharmaceutical)
• Materials: All stainless steel construction
• Seals: Specialized mechanical seals rated for -65 °C service
• Bearings: Low-temperature bearings
• Maximum Pressure: 150 PSI (10 BAR)
• Maximum Speed: 25 RPM
• Passage Size: 1.500" (38.1 mm)
• Diameter: 5.940" (150.9 mm)
• Length: 10.770" (273.6 mm)
• Through Bore: None
