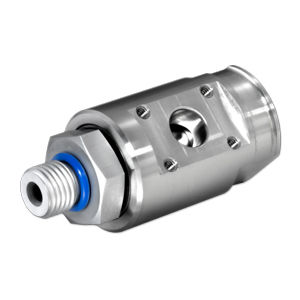

Rotary union for aeronautical applications Custom Rotary Union

stainless steellow-speedwith seal

Overview
Single-passage, compact rotary union designed for space/atmosphere applications. Configured for an actuating arm in an automated fueling system; includes specialized components and seals. Environmental testing and material certifications are provided.

Project Specifications

• Industry: Aerospace
• Media Type(s): Other
• Environment: Atmosphere / Space
• Material: Stainless Steel
• Max. Pressure(s): 50 PSI [3 BAR]
• Max. Speed: 1 RPM

Physical / Flow Details

• Number of Passages: 1
• Passage Size(s): .156" [4 mm]
• Through Bore: None
• Diameter: 1.060" [26.9 mm]
• Length: 2.260" [57.4 mm]

Related Projects Summary

• Industry: Aerospace
• Number of Passages: 1 Passage
• Passage Size Range: 0.125" - 0.249" [3.18 mm - 6.32 mm]
• Rotation Speed (RPM): 0 - 24 RPM
• Pressure (PSI): 0 - 199 PSI [0 - 14 BAR]
• Media: Other
• Material: Stainless Steel
• Thru Bore: None
• Environment: Atmosphere / Space

Technical Characteristics

• Configuration: Single passage rotary union
• Intended use / Environment: Atmosphere / Space (space/atmosphere application)
• Primary material: Stainless Steel
• Maximum pressure: 50 PSI [3 BAR]
• Maximum rotational speed: 1 RPM
• Passage size: .156" [4 mm]
• Number of passages: 1
• Through bore: None
• Outer diameter: 1.060" [26.9 mm]
• Overall length: 2.260" [57.4 mm]
• Application note: Designed for an actuating arm in an automated fueling system; includes specialized components and seals, environmental testing and material certifications
