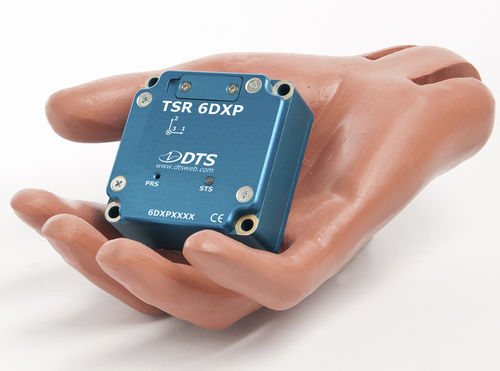

Shock data-logger TSR 3DXP, TSR 6DXP

USBwithout displaytriaxial

High shock, standalone data logger with built-in sensors Microprocessor, power, signal conditioning, 12-bit ADC Easy to configure with PC, set to record unmonitored Transient capture or continuous recording High Performance Sampling rates up to 75 ksps/ch Shock rated to 10000 g survivable Record milliseconds to months; stored in memory Date, time and temperature stamp for each event Two Models - TSR Quick Reference Guide TSR 3DXP standalone shock recorder Triaxial accelerometer: ±1250 or 6000 g Pressure sensor: 100 psia TSR 6DXP standalone shock recorder Triaxial accelerometer: ±1250 or 6000 g Pressure sensor: 100 psia Triaxial angular rate sensor: 0.3 Hz to 5 kHz Software that's fast and easy USB download Real-time, logging, viewing and exporting
