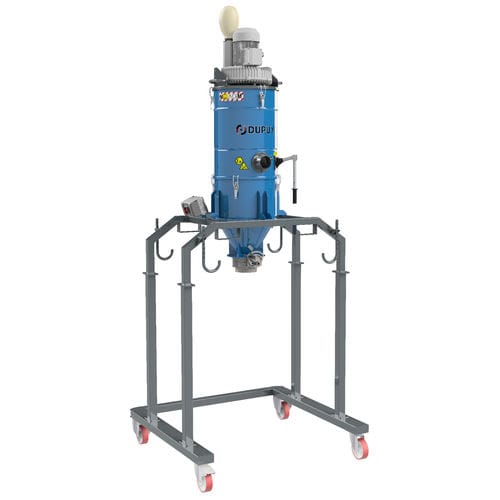

Suction unit silo Silovac 100T Z22

three-phase motorsteel

SILOVAC 100T Z22, an ATEX-certified suction silo with three-phase motor, is designed for constant and long-lasting use. A mobile machine on wheels that allows the sucked material to be discharged into big-bags, while maintaining maximum operating comfort. Ideal for suction of solids and dust in low explosion hazard locations, the intelligent design allows it to integrate into your production plant according to your needs. The sucked material is easily discharged into a drum or BIG-BAG, to optimize production time. In addition, it is equipped with a telescopic frame to make it easier to move and transport. This silo vacuum is highly versatile and allows you to choose from several options for each individual component. Complies with EN IEC 62784:2018 standard for zone 22. The suction unit is a high-performance three-phase side-channel turbine with direct coupling between the motor shaft and impeller. Because it has no transmission systems, it requires no routine maintenance and is suitable for prolonged continuous service. This machine is equipped with an antistatic M-category star filter with high filtering efficiency and a manual filter shaker to ensure constant and excellent cleaning of the high surface area filters. There is the possibility of inserting a self-cleaning filter at the top by means of a timed automatic system that cleans the filters by means of chamber backwash valves.
