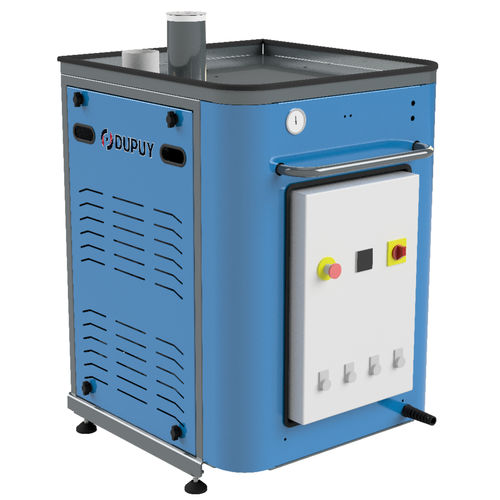

Industrial central vacuum system CVAC 130

modular

DUPUY centralized industrial suction systems enable the suction of solid or dusty material under special conditions. Thanks to its power and modular piping, centralized systems can suck up material even over long distances or at several locations simultaneously. Suction is provided by a medium-sized side channel blower type suction unit, with direct coupling between the fan and motor shaft and no transmission system. It is therefore completely maintenance-free, suitable for 24/7 service, very quiet and high performance. A safety switch stops the motor in case of overheating. A vacuum indicator enables constant monitoring of suction performance and detection of filter clogging. A pressure relief valve protects the motor from overheating in case of filter clogging or other blockages in the suction system; a diffuser filter reduces speed and noise. The configuration of the production site determines the characteristics of the suction system, which is designed according to the specific size and characteristics of the area in which it is to be installed, the required suction performance, and the application requirements. Dupuy tailors solutions to ensure your long-term production efficiency. The suction unit is a high-performance side-channel turbine with direct coupling between the motor shaft and impeller. Since it has no transmission system, it requires no routine maintenance and is suitable for continuous service.
