Workshop cabinet 1 195 x 610 x 2 099 mm | SUPREME plus XL
floor-mountedhinged doorsheet steel

workshop cabinet
workshop cabinet
workshop cabinet
Add to favorites
Compare this product


Characteristics

Type
workshop
Mounting
floor-mounted
Construction
hinged door
Material
sheet steel
Product applications
for gas bottles
Width

1,195 mm
(47 in)

Height

2,070 mm
(81.5 in)

Depth

610 mm
(24 in)

Description

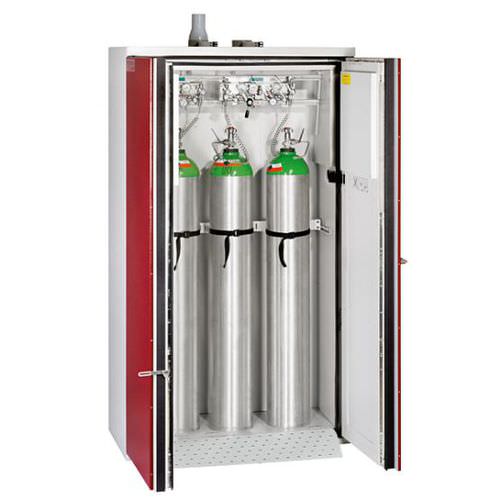

Safety cabinet with wing doors for the storage of pressurised gas cylinders. Outer dimensions: 1195 x 610 x 2099 (WxDxH) mm. Inner dimension: 1038 x 408 x 1848 (WxDxH) mm. weight: 635 kg Description: Outer carcass in sheet steel powder coated in RAL 7035 light grey, wing doors in RAL 3003 ruby red. Inner carcass RAL 7035 light grey, Doors can be opened to an angle of almost 180 degrees. When connected to an industrial exhaust air system, ventilation and extraction in the whole of the cabinet through slots in the ducts. Exhaust socket NW 110/75 on the cabinet roof Penetration for pipes and cables already prepared on the cabinet ceiling. No additional seal or lug necessary. Roll-in flap with notch, semi-automatic opening by elastic force. Accessories: 1 cylinder holder incl. 4 retaining belts, 2 horizontal installation rails for installation of gas fittings, 1 cylinder lock. Tested and certified: GS certification by recognised test institute TÜV Süd, according to DIN EN 14470-2, laboratory furniture standard DIN EN 14727 and requirements by EK5/AK4 09-10. GS / CE mark. Type testing according to DIN EN 14470-2 by recognised materials testing institute.
