Monitoring control system MPC

processpowerprofile

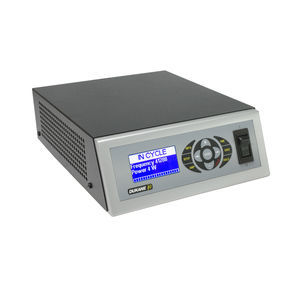

Reduce cost by eliminating the need for a generator for each probe The Multi-Point Control unit is designed for assembly systems where one ultrasonic power supply is sequenced to several ultrasonic probes. Our unique Control and Process Monitoring Profile is available for each individual probe when coupled with a Dukane iQ Series ultrasonic generator. Eliminate equipment failures due to improper machine programming Provides suspect or bad part alarms independent for each weld point. Typical automated machines using Dukane’s MPC can have an illuminated part map that would immediately indicate to the operator potential weld defects. Easy to Integrate Reduces the need for electrical cabinet space and hardware for custom built sequencers. Makes integration easier with drop module and reduces risk of failure in the field. Patented Multi-Point Control unit is designed to provide assembly solutions where one ultrasonic power supply is sequenced to several ultrasonic probes. Our unique Control and Process Monitoring Profile is available for each individual probe when coupled with any of Dukane’s iQ series ultrasonic generators. Multi-Point Control module has the ability to sequence up to 16 probes or converters and can be purchased from 2 to 16-point control. Color-coded status LED’s insure ease of system operation and field troubleshooting. The MPC module can be used with all frequency and power levels of ultrasonic systems. Dukane’s Multi-Point Controller coupled with iQ series power supplies offers independent control and process monitoring of weld time, weld energy, and amplitude per ultrasonic probe.
