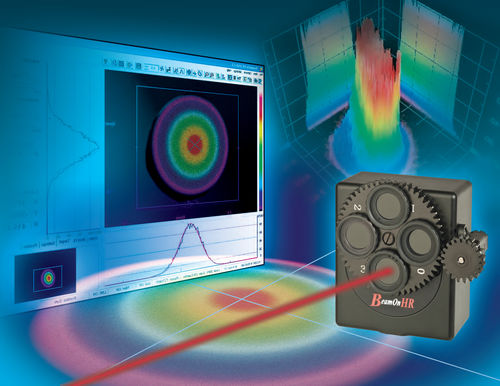

Camera laser beam profiler BeamOn HR

high-resolution

1.4 Megapixel CCD Beam profiler, 12 Bit resolution. A complete test station measuring Profile, Power and Position, both for CW and Pulsed beams. Based on a USB 2.0 interface for notebooks. Offered with a complete set for larger beams and high power attenuation. The BeamOn HR system is a beam diagnostics measurement system for real-time measurement of CW or Pulsed laser beams. It provides laser beam parameters, such as: beam width, shape, position, power, and intensity profiles. Software also provides report function for beam analysis settings and results (see an example on Downloads). The BeamOn HR is based on a USB 2.0 CCD Camera, software driven device, which can be connected to a Notebook (or Desktop) computer via the High Speed USB 2.0 port and run on Windows 7 / 8 / 10 OS (32 & 64 bit).
