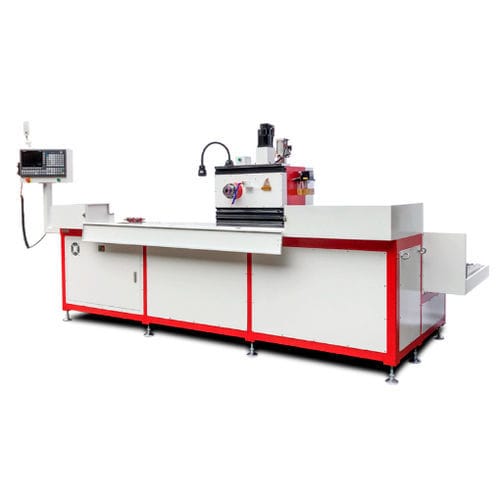

CNC drilling and tapping machine DNC-2020N4

horizontal3-axisfor steel

Horizontal drilling, tapping and milling compound machine, DNC-2020N4 is a multi-functional three-axis automatic tool change horizontal drilling, tapping, chamfer equipment. 1. This model is a multi-functional three-axis automatic tool change horizontal drilling, tapping, chamfer equipment. 2. Horizontal BT30 high-speed spindle, three-axis linkage to adapt to different positions of the side drilling. 3. The guideway sliding double-output fixture presses down the surface of the product, so that the product will not shake when the main shaft drilling and tapping, different lengths of the product can slide the cylinder distance to change the position of the pressure product, and the applicability is strong. 4. A total of 4 row type tool holder, multi-specification aperture processing automatic tool change. Chamfer range: 1~20mm Automatic tool change: 10 tools Key benefits Significantly improves production efficiency. Industry Pain Point: Traditional processing relies on manual operation of multiple machines (such as drilling and tapping machines), leading to frequent process switching, which is time-consuming and labor-intensive. Solution: Multi-process Integration: A single setup can complete multiple operations, including drilling, tapping, chamfering, and milling, reducing machine changeover time. High-speed Processing: High spindle speeds (typically reaching tens of thousands of RPM) combined with fast-moving axes (e.g., over 30m/min) significantly shorten processing cycles. Automation Support: Optional features such as an Automatic Tool Changer (ATC) and automated loading/unloading systems enable continuous production.
