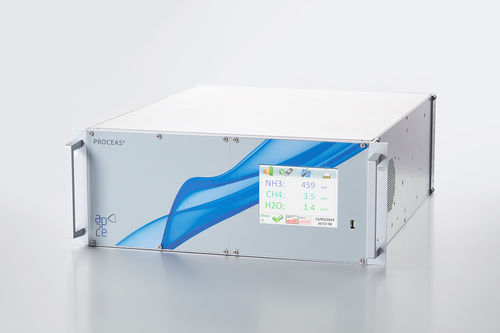

Water analyzer ProCeas Air

ammoniahydrogen sulfidecarbon dioxide

Product overview
Fully pre-calibrated multi-component gas analyzer for ambient air, workplace and greenhouse gas monitoring. Designed for low to medium gas concentrations using Optical Feedback Cavity Enhanced Absorption Spectroscopy (OFCEAS) combined with Low Pressure Sampling (LPS). Rack-mounted 19" 4U form factor, suitable for continuous direct or extractive measurement.

Features

• Direct and extractive measurement modes
• Continuous, real-time monitoring
• Multi-component analysis (up to 16 multiplexed lines, option)
• High-resolution infrared laser technology
• Patented OFCEAS IR laser principle
• No optical moving parts
• Patented low pressure sampling system (LPS)
• No instrument air consumption
• Low annual maintenance (typical yearly)

Benefits

• Accurate measurements without cross-interferences across complex matrices
• High sensitivity down to sub-ppm/ppb levels depending on compound
• Self-calibrating system (no span gases required)
• Very fast response time for process and ambient monitoring
• Stable and precise quantitative results for laboratory or field installations

Applications

• Ambient air quality monitoring
• Workplace safety and compliance
• Research and development
• Industrial processes (eg. wood industry, emissions monitoring)

Compounds and measuring ranges

• H2S — 300 ppb … 5 ppm
• NH3 — 300 ppb … 5 ppm
• CH4 — 1 ppm … 50 ppm
• H2O — 1 Vol.-% … 5 Vol.-%
• CO2 — 300 ppm … 2 Vol.-%
• N2O — 300 ppb … 50 ppm
• CHOH — 300 ppb … 50 ppm
• HF — 100 ppb … 1 ppm
• HCl — 100 ppb … 1 ppm

Performances

• Response time — < 60 s (depends on compound and sampling line length)
• Measurement interval — 1 s
• Power supply — 110 … 230 VAC, 50 … 60 Hz

Technical data

• Power consumption — ~150 VA
• Dimensions — 19" rack, 4 U
• Weight — ~20 kg
• Data output — Ethernet, Modbus (TCP/IP, RS), analog, USB
• Sample conditions — -10 … 45 °C; < 99% RH non-condensing; Atm ± 100 mbar; > 0.4 slm flow; up to 16 multiplexed lines (option)
• Ambient conditions — 5 … 40 °C; < 99% RH non-condensing

Accessories
Mandatory

• Probe (filter and sonic nozzle)
• Sampling line
• Pumping system

Optional

• External pumping system
• Integration in cabinet
• Air conditioning system
• Ex p certification
• Vortex cooling
• Analog outputs
• Modem for remote connection
• Up to 16 lines for multiplexed measurement (option)

Technical specifications

• Measurement principle: OFCEAS (Optical Feedback Cavity Enhanced Absorption Spectroscopy) with Low Pressure Sampling (LPS)
• Multi-component IR laser spectrometer, up to 16 multiplexed measurement lines (option)
• High resolution IR laser technology with patented OFCEAS
• Direct and extractive continuous operation
• Self-calibrating system (no span gases required)
• Typical response time: < 60 s depending on compound and sampling line
• Measurement interval down to 1 s
• Power supply: 110–230 VAC, 50/60 Hz; power consumption ~150 VA
• Form factor: 19" rack, 4 U; weight ~20 kg
• Data interfaces: Ethernet, Modbus (TCP/IP, RS), analog, USB
• Operating/sample conditions and environmental limits as listed above
