Measurement control system Model M

monitoringregulatinglevel

Overview
The M module (Model M) is a manual control alternative for vacuum leak testing designed to provide simplicity, fast operation and minimal maintenance. It is compatible with any CDV vacuum chamber and enables the same control logic to be used across different chamber sizes, supporting standardized operation across a facility, reduced training requirements and lower risk of operator error.

Operation and control

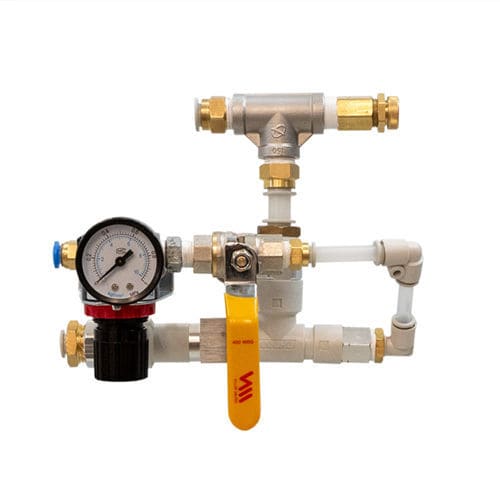

Model M allows direct regulation and visual monitoring of vacuum level through manual control components. The system uses an integrated pressure gauge and a manual adjustment valve so the operator can set and observe the required vacuum for each test in a simple and practical manner.

Features

• Vacuum control: manual vacuum regulation, integrated digital gauge, visual vacuum adjustment, accuracy ±5 mbar, working range –100 kPa to 0 (water pressure gauge).
• Manual operation: simple and intuitive mechanical design, immediate operator response to the process, no programming or electronic controllers required.
• Compatibility: compatible with any CDV Vacuum Chamber; compact integration as an external control module.

Benefits

• Simple and fast operation: performs tests without programming, parameterization or electronics, simplifying daily use and reducing training time.
• Practical vacuum level control: vacuum adjustment via manual regulation valve with visible gauge reading for clear control throughout the test.
• Cost-effective and functional solution: accessible, reliable option for vacuum leak testing when automation is not required.
• Reduced complexity and lower maintenance: eliminating electronic controllers provides a simpler, more robust architecture that is easier to maintain.
• Ideal for occasional and basic testing: suitable for laboratories, quality departments or production environments where advanced automation or digital recording is not necessary.

caractéristiques / spécifications techniques

• Model name: Model M
• Type: Manual control system for CDV vacuum chambers
• Vacuum regulation: manual regulation valve
• Gauge: integrated digital pressure gauge (visual monitoring)
• Accuracy: ±5 mbar
• Working range: –100 kPa to 0 (water pressure gauge)
• Compatibility: compatible with any CDV Vacuum Chamber
• Operation: fully manual, no electronic controller or programming required
• Integration: compact external control module designed to be used with CDV chambers
