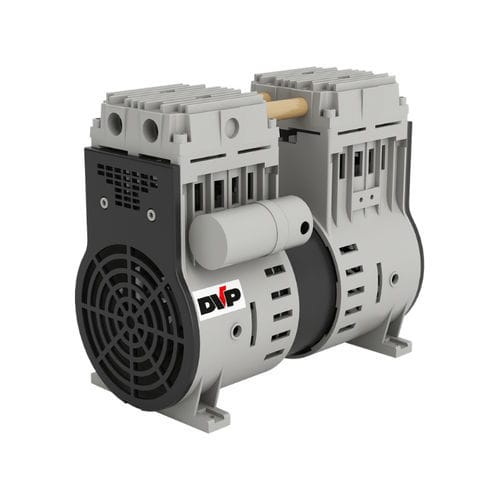

Diaphragm vacuum pump ZA 200P
pistonrocking pistonoil-free

diaphragm vacuum pump
diaphragm vacuum pump
diaphragm vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
diaphragm, piston, rocking piston
Lubrication
oil-free
Number of stages
single-stage
Applications
suction
Other characteristics
small
Ultimate vacuum

60 mbar
(0.87 psi)

Flow rate

186 l/min, 224 l/min
(49.14 us gal/min, 59.17 us gal/min)

Power

0.58 kW
(0.79 hp)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 50 °C
(122 °F)

Length

274 mm
(11 in)

Width

162 mm
(6.38 in)

Height

240 mm
(9.45 in)

Noise level

59 dB

Weight

11.5 kg
(25.35 lb)

Description

DVP expands the range of ZA Piston Pumps with the new ZA 200P. ZA 200P rocking Piston Pumps combines the best characteristics of traditional piston pumps and diaphragm pumps into small units with excellent features. This series is ideal for use in applications where oil-mist is undesirable, like electromedical, suction cups conveyors, laboratory applications and construction.
