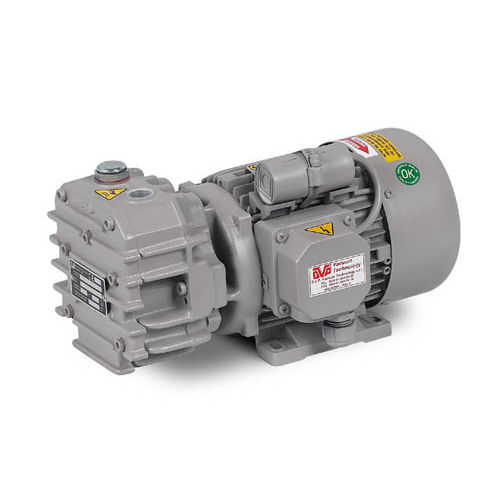

Rotary vane vacuum pump SB.10
oil-freesingle-stagemonobloc

rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-free
Number of stages
single-stage
Other characteristics
monobloc
Flow rate

10 m³/h, 12 m³/h (353.15 ft³/h)

Ultimate vacuum

120 mbar (1.74 psi)

Description

This oil free pump has an industrial monobloc design. Due to the rotor being directly assembled on the motor shaft and lightweight alloys being used, the pump series has a limited weight and size meaning it can be fitted into a limited space, as long as there is good ventilation. A combination of the special design and special gaskets ensures that perfect air-tightness is achieved by the TV model. Designed by DVP Vacuum Technology, a protective filter at the inlet and a silencer at the outlet (only SB.10) are included as the standard equipment. Model SB.10 is ideal for use as a compressor.
