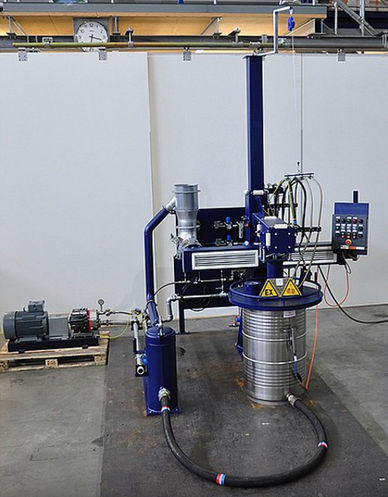

Spray washing machine SP

solventautomaticrobust

Robust and user-friendly washing machine for inside cleaning of rectangular and cylindrical containers by brushes and simultaneous spraying with solvent Very good inside cleaning by means of a rotating spray head with pointed spray nozzles, spraying pressure 50 bars Depending on the shape of the container, the operator may choose between a spray head rotating around 2 axes and a spray head rotating around the vertical axis and moving up and down. Separate spraying system for rinsing with clean solvent The spray head is lowered into the container, and the upper container opening closed by the machine lid, by means of a pneumatic lifting frame Sensor for the lid pressure; spraying does not begin until the lid rests tightly on the container Washing solvent in separate container, level switch for filling and draining High-pressure reciprocating diaphragm pump as washing pump, separate pump for rinsing, pneumatic diaphragm pump for draining Edge filter for protecting the high-pressure pump from foreign matter 3 manometric switches for deactivating the high-pressure pump in case of insufficient pressure (e.g. hose break), excessive pressure (contraction of the pressure line) or insufficient suction pressure (e.g. clogged edge filter) Filter with removable basket for protecting the evacuation pump and the solvent tank Automatic washing program: washing – draining – rinsing – internal air extraction; program steps can be selected individually Explosion protection according to ATEX, category 1 (with type examination) for zone 0 inside, category 2 for zone 1 outside Accessories Lid versions and adapters for different container openings
