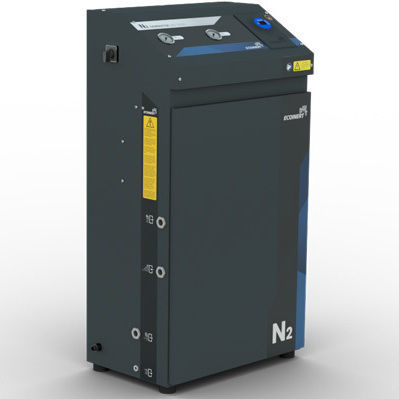

Inert nitrogen generator Mini 5-50

high-purityfor productionfor heat treatment furnaces

Product overview
The Mini 5-50 nitrogen generator with integrated purge tank has been tested in collaboration with Formlabs in Germany. It provides a continuous nitrogen supply for the Fuse 1+ 30W printer and is suitable for materials such as Nylon 11 Powder and Nylon 11 CF Powder. When connected to a 6 bar(g) compressed air network the unit delivered 1.4 Nm³/h at a purity ≥ 99.5 %, matching Formlabs' purge requirements.

Application
Designed for inert gas purging to prevent oxidation during laser sintering processes on the Formlabs Fuse 1+ 30W. Recommended purge flow by Formlabs: up to 1.2 Nm³/h; the Mini 5-50 achieves 1.4 Nm³/h (adjustable purity) under specified inlet conditions.

Key features

• Integrated purge/storage tank for stable purge cycles
• Membrane-based nitrogen generation from compressed air
• Output compatible with Formlabs Fuse 1+ 30W requirements
• Adjustable purity up to ≥ 99.5 % (configurable to 99.9 %)

Advantages

• Eliminates need for high-pressure nitrogen cylinders on site
• Reduces operational costs for nitrogen supply
• Continuous on-demand nitrogen availability for production

Technical details
Nitrogen Generator Mini 5-50 for Formlabs Fuse 1+ 30W
Nitrogen purity (adjustable): 99.5 – 99.9 %
Delivery quantity*: 0.6 – 2.5 Nm³/h (1–280 Cu.Ft./h)
Inlet pressure: 4 - 8.5 bar(g) / 58 - 123 psi
Outlet pressure (adjustable): Max. 1.5 bar / 21 psi below inlet pressure
Pressure dew point: ≤ -40 °C / -40 °F
Ambient temperature: 5 °C – 45 °C (41 °F – 104 °F)
Internal storage size: 50 l / 190 gal
Dimensions (H x W x D): 1120 x 600 x 390 mm
Power supply: 110 - 230 V, 50/60 Hz
Sound level: <45 dB(A)
Weight: 78 - 82 kg (172 - 180 lb)
*Depending on generator variant and inlet pressure

Technical specifications

• Model tested: Mini 5-50 with integrated purge/storage tank
• Primary use: Nitrogen purge for Formlabs Fuse 1+ 30W (suitable for Nylon 11 Powder and Nylon 11 CF Powder)
• Formlabs recommended purge flow: up to 1.2 Nm³/h
• Measured output (Mini 5-50): 1.4 Nm³/h at ≥ 99.5 % purity (with 6 bar(g) inlet)
• Technology: Membrane separation from ambient compressed air
• Alternate unit (ECO-KPL): purity 95 - 99.9 %; delivery 0.13 - 0.83 Nm³/h; integrated storage
