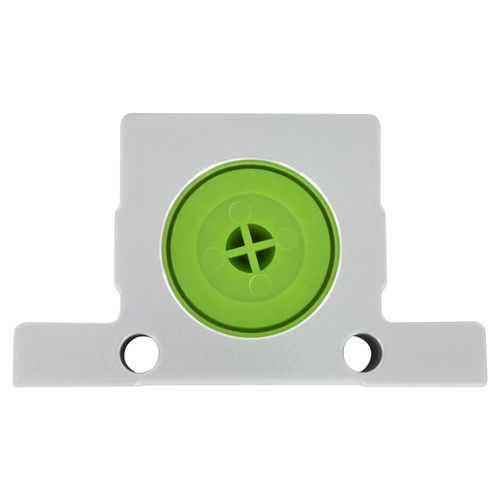

Pneumatic vibrator BPV series

pneumatic vibrator
pneumatic vibrator
pneumatic vibrator
Add to favorites
Compare this product


rotary, turbine, ball
Product applications
for conveyors
Other characteristics
aluminum, plastic


Series BPV Pneumatic Ball Vibrators are the best choice for bridge-break in thin walls and small tanks. This model can be used in vibrating separators, vibrating conveyors, and against electroplating build-up. It can also be used on material compacted while packing or sand compacted while molding. The aluminum body is equipped with a steel ring and ball inside that is tightly closed by plastic side covers. Vibration is caused when the internal ball, pushed by compressed air, runs in a rotary motion to produce centrifugal force. FEATURES The body is made of high strength aluminum alloy. Small in size and light-weight. Can be used in high humidity or dusty working areas. Frequency and amplitude of vibration can be adjusted as needed Temperature Limits: 212°F (100°C). Noise Level: - 75-95 dBA. Supply Pressure: - 29 to 87 psi (2 to 6 bar). Air Connections: - 1/4" BSPT female with 1/4" OD push to connect adapter on BPV-1, BPV-2, BPV-3, BPV-4, BPV-5. 3/8" BSPT female with 3/8" OD push to connect on BPV-6. Also includes muffler for exhaust port. Housing Material: Aluminum.
