pneumatic sander / orbital
Extreme X51,X51H,X52,X52H

{{requestButtons}}

Characteristics

  • Operation:

    pneumatic

  • Type:

    orbital

Description

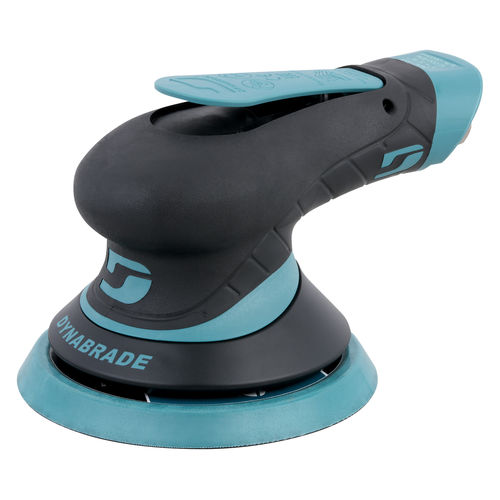

Dynorbital ® Extreme Random Orbital Sander Series, Non-Vacuum, 5" pad diameter

Highest power-to-weight ratio in the industry

Available with vinyl or hook-face pad; 3/16" (5 mm) or 3/32" (2.5 mm) orbit

Includes perfectly balanced, weight-mated sanding pads – ensuring the smoothest operating performance and minimal vibration

Specifications:
Speed: 12,000 RPM (11,000 RPM Load Speed)
Power: 0.3 HP (224 Watts)
Pad Type: Vinyl-Face for X51 and X52; Hook-Face for X51H and X52H
Pad dia.: 5" (127 mm)
Orbit dia.: 3/16" (5 mm) for X51 and X51H; 3/32" (2.5 mm) for X52 and X52H
Vacuum: Non-Vacuum
Weight: 0.8 kg (1.78 lb) for X51 and X51H; 0.8 kg (1.74 lb) for X52 and X52H,
Length: 176 mm (6.9")
Height: 95 mm (3.7")
Air Consumption 19 SCFM (538 LPM)
Air inlet thread 1/4" (6 mm)

Sales advantages:

Ergonomically angled housing with integrated comfort platform
Tactile, textured, soft grip
Vacuum models have the highest dust capture rate on the market
Color-coded levers – 3/16" orbit (teal); 3/32" orbit (black)

Target markets:

Wood
Metal
Composites
Plastic
Solid Surface

Parts page: PD17.01
