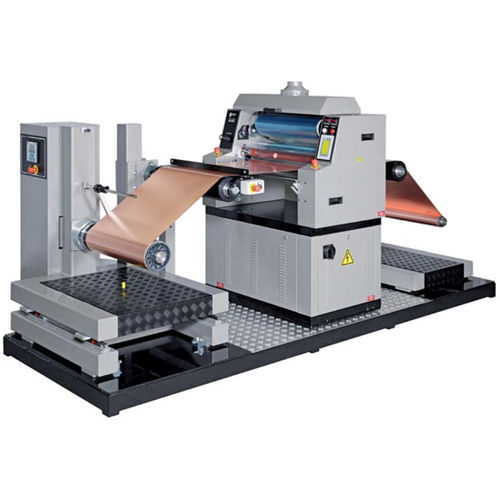

Roll-to-roll laminator RTR 3124

The Laminator Roll-to-Roll RTR 3024 has been designed for easy roll-to-roll materials dry film resist (DFR) lamination with hot rolls, single- or double-sided. The roll is unwound, tensioned, aligned and laminated. The DFR alignment is obtained by pre-centering operation initially carried out manually. During lamination a more accurate centering can be achieved by a fine alignment device. Advancement of the web is managed by servo-motor installed in the rewinding system and the speed is controlled by encoder. The web alignment is controlled by Ultra Sonic sensor in the Y direction and the tension is adjustable and controlled by electronic device. After lamination, the splice table with pneumatic hold down bars allows to lock and seal the new web.
