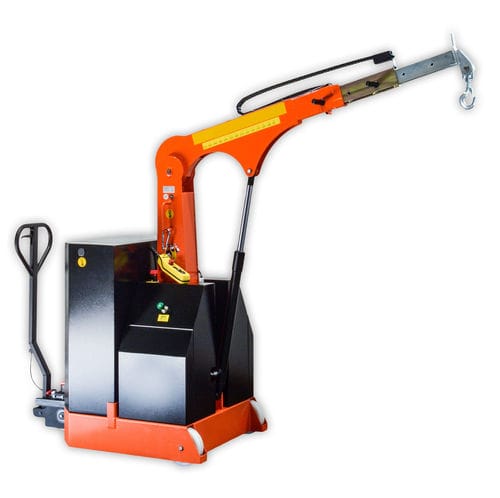

500 kg shop crane HB500GKFaPo

with counterweightelectriccompact

Compact counterweight workshop crane with electric lifting for loads of 500 kg. Are you short of space, needing very frequent use and having to approach the load with care? This extremely compact chassis, with electric lifting and FaPo® driving device for precise positioning, will help you with the work! Battery operated electric lifting with remote control by cable allows the operator to lift or lower the load from any point around the crane. The FaPo® power-assisted system for manoeuvring and precise positioning, our own development, helps to make the job simpler. Characteristics Lifting and lowering DIN safety swivelling load hook, high quality galvanised, battery operated by simply pressing a button on the control. Using the remote button bar, with approximately 3 metres of cable, the operator has a flexible means of controlling the lifting and lowering independently of the crane. This means that the operator can be close to the load to watch it and assist in exact positioning. This gives greater safety and allows the work to be completed sooner. Movement Manual, assisted by the Hydrobull mechanical drive positioning, FaPo®. Load jib There are 13 extension settings, 150 mm apart, easily selected by 2 separate galvanised stabilisers which use a locking-bolt system. The jibs are also backed up with a pressure lock to avoid accidents. Parking The machine can be easily and conveniently locked in position by turning a lever on the FaPo drive device. Manual units are not usually fitted with a hand brake.
