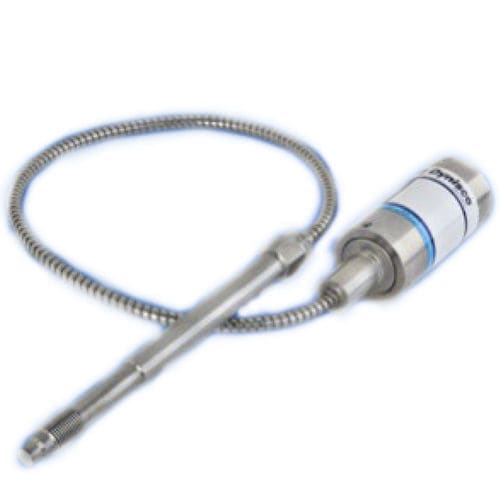

Relative pressure transducer PT460XL for abrasive fluidsfor corrosive fluidsmelt
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Fluid
- for corrosive fluids, for abrasive fluids
- Applications
- melt
- Pressure range
Max.: 30,000 psi
Min.: 0 psi
- Precision
1 %
- Process temperature
121 °C, 400 °C
(250 °F, 752 °F)
Description
The PT460XL transducers provide the industry standard 3.33 mV/V signal designed to work with most pressure indicators. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT460XL features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of electrical connections.
Specifications
Inconel diaphragm
Superior temperature stability
Patented sensing element
Internal 80% shunt calibration
