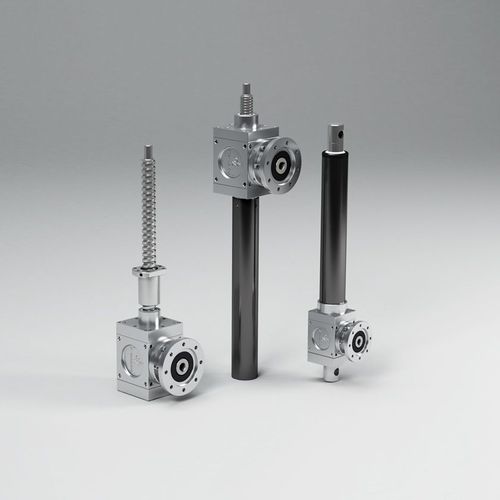

Ball screw jack QBUP

bevel gear

QBUP and QBAT Series The great modularity and versatility of the QB series bevel gear design enabled the development of the QBUP and QBAT series. QBUP screw jacks are made with spiral bevel reduction gears and ball screws, available in both rotating and travelling versions. The range includes: QBUP ROTATING VERSION • 6 SIZES • 5 REDUCTION RATIOS 1:1 - 1:1.5 - 1:2 - 1:3 - 1:4 • LOADS FROM 10 kN A 200 kN QBUP TRAVELLING VERSION • 3 SIZES • 5 REDUCTION RATIOS 1:1 - 1:1.5 - 1:2 - 1:3 - 1:4 • LOADS FROM 15 kN A 90 kN
