Education camera module See3CAM_CU55

for access controlfor fisheriesfor retail

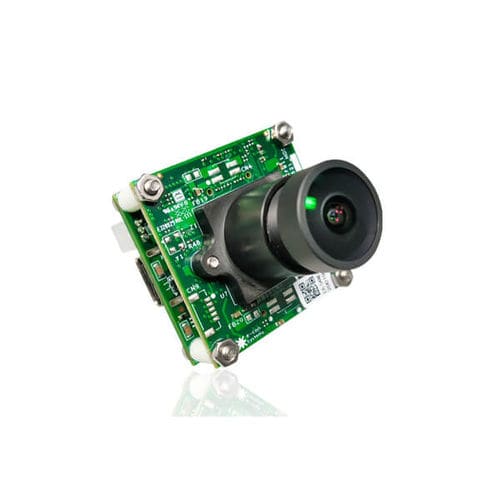

See3CAM_CU55 - 1/2.5" 5.0 MP Low Noise USB Camera (Color) See3CAM_CU55 is a 5.0MP USB3.1 Gen1 UVC Color Camera with S-mount (also known as M12 board lens) lens holder. It is a two-board solution containing camera sensor board based on 1/2.5" AR0521 image sensor from ON Semiconductor and USB3.1 Gen 1 Interface board. The powerful on-board Image Signal Processor (ISP) brings out the best image quality of this 2.2micron pixel 5MP AR0521 CMOS image sensor making it ideal for next generation of high resolution surveillance, biomedical instruments and biometric authentication applications.The See3CAM_CU55 is a UVC-compliant USB3.1 Gen 1 SuperSpeed Camera that is also backward compatible with USB2.0 host ports and does not require any special camera drivers to be installed on the host PC. When connected to USB2.0 host ports, the See3CAM_CU55 camera supports all the resolutions and at lower frame rates. Key Features - Houses e-CAM55_CUMI0521_MOD - 5.0 MP AR0521 Color Camera Module - Fixed Focus with M12 lens holder - Electronic Rolling Shutter - Output format: UYVY and MJPEG formats - Plug-&-Play (UVC compliant - No drivers required)and Backward compatibility with USB 2.0 hosts with limited features and capabilities Camera Module Features: Sensor:AR0521 from ON Semiconductor Sensor Resolution and Optical Format:5MP CMOS Image Sensor. 1/2.5" Optical format Sensor type:5MP CMOS Electronic Rolling Shutter Sensor with Bayer RGB Color Filter Array. Image Signal Processor:On-board high performance ISP Output Format:Uncompressed UYVY format and Compressed MJPEG format Array Size:2592x1944 pixels Sensor Features: Pixel size:2.2μm x 2.2μm Sensor Active Area:2592H x 1944V
