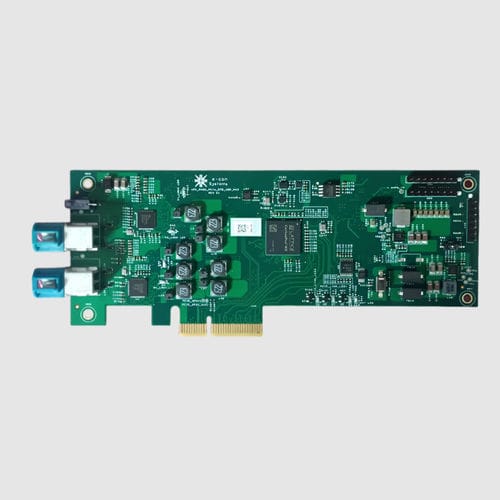

PCIe acquisition card Frame Grabber Board

FPGAreal-time

e-con Systems is addressing a crucial demand in x86-based embedded vision systems by enabling seamless integration of GMSL2 cameras with its Frame Grabber Board. Designed as a future-ready solution for high-speed video acquisition, this compact PCIe card supports up to 8 camera modules, ensuring efficient and low-latency data transmission. Leveraging over two decades of expertise in camera technology, e-con Systems bridges the gap between MIPI/GMSL cameras and PCs or servers, delivering high-bandwidth performance for advanced vision applications. Equipped with two Quad FAKRA connectors, this frame grabber board supports GMSL2 interfaces for long-distance data and power transmission (up to 15m). The onboard FPGA efficiently converts MIPI data into PCIe format, making it an ideal solution for applications requiring multi-camera synchronization, real-time image processing, and AI-based analytics. Key Features Supports upto eight GMSL2 cameras Frame rate : FullHD (1920 x1080) @ 30 fps (with eight cameras) Shielded coaxial cable of length upto 15m PCIe Gen 2 interface Low profile PCIe card size Operating temperature: -10° to 55°C Operating Voltage: 12V to 24V
