Optical zoom camera FarVis22_ONX_MIPI_10X

WDRmachine visionfor robotics

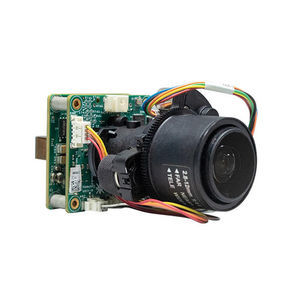

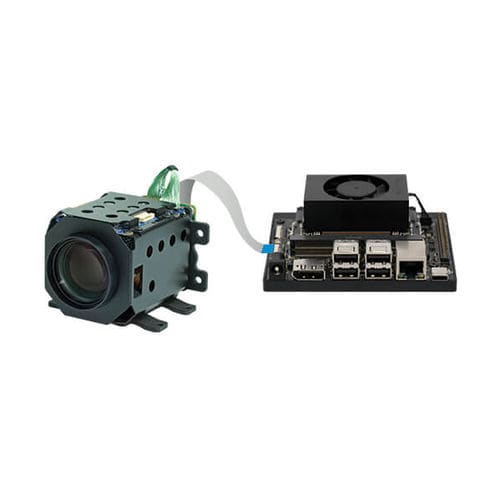

FarVis22 is a Full HD zoom camera equipped with a Sony STARVIS IMX462 CMOS image sensor, featuring 10x optical zoom and 32x digital zoom for detailed shots from a distance, along with autofocus capabilities. It is ideal for a range of imaging applications such as sports broadcasting and analytics, smart surveillance, intelligent transportation systems (ITS), and parking lot management. The FarVis22 camera solution includes a camera module and an adapter board that seamlessly integrates with Jetson Orin NX™/Nano™ development kits through 4-lane MIPI CSI through J21 connectors. Highlights 2MP color camera based on Sony® STARVIS IMX462 CMOS sensor 10x optical zoom and 32x Digital zoom Day & Night (ICR) WDR (Wide Dynamic Range) On-screen display functionalities DIS (Digital Image Stabilizer) Motion Detection Compatible with NVIDIA Orin NX™/Nano™ platforms Key features: Frame Rate: 1920x1080 @ 60FPS Refer pdfDatasheet  for complete frame rate details. Output format: UYVY Lightweight, versatile, and portable design Field of View (FOV) angle varies with preview resolutions Interface: Interface: MIPI CSI Connector: 22-pin FFC connector (CN1) Cable Length: 15 cm
