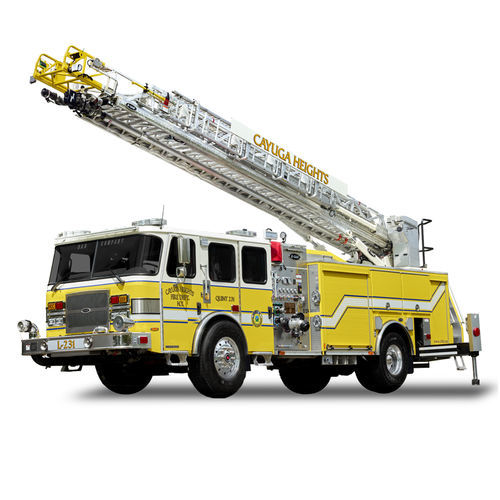

Aluminum ladder HP 75

singlefor platform

With over 40 years of aerial experience with an industry leading performance record, E-ONE continues delivering on our founding principles of innovation and safety. E-ONE’s HP 75 features an extruded aluminum ladder that exceeds NFPA requirements with a 2.5:1 structural safety factor. In addition, the aluminum aerial will not rust, need painting, or require rung cover replacement. The HP 75 delivers lower life-cycle cost than other aerials on the market. Features Custom Chassis Typhoon or Cyclone cab 58”, 67.5”, 74” and 80” cab lengths available Optional split raised roof and exterior cab compartments 210”-230” wheelbase Hot dipped galvanized & powder coated double rail frame standard Cummins® engines up to 605 HP Taper leaf front suspension with optional IFS Spring or air ride rear suspension Standard safety features include roll cage style cab, CrewGuard® & ABS brakes Clean cab options including Active Air Purification, HEPA filtration, easy-clean seating, and alternative SCBA storage available to meet customer requirements 75’ aluminum ladder with 2.5 to 1 structural safety factor Ladder rated at 500 lbs (wet or dry) with an equipment allowance of 75 lbs. Single set of outriggers with a spread of only 16’ Optional short jack feature with 200-degree rotation and “alley” mode (short jacked both sides) Waterway flows of up to 1500 GPM Available with direct hydraulic controls or AACS (Advanced Aerial Control System) 11’4” overall height standard (4” lower overall height available with no intrusion into the cab)
