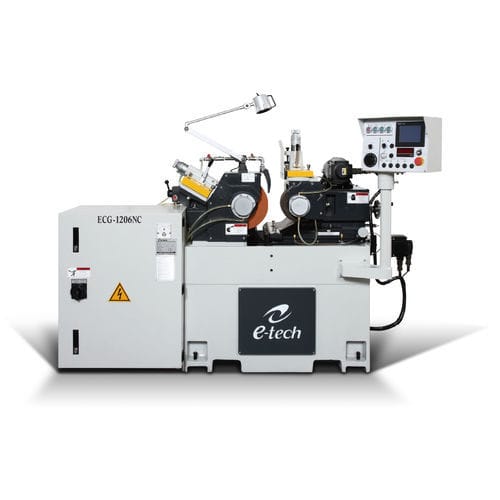

Centerless grinding machine ECG series

workpieceNChydraulic

LCD Touch Screen Control Technology Auto-infeed Grinding Cycle Cycle sequence: S1-Rapid approach S2-Coarse grinding T1-Dwell time S3-Fine grinding T2-Sparkout dwell time Automation Solution Multiple machines can be linked to do rough, medium and fine grinding in one production line to save time for repetitive loading and unloading procedure. Blade Selection Due to different working diameters, the guide plate and regulating wheel must be parallel as this influences the grinding accuracy significantly. Part name：Step shaft Material：SCM415 Removed stock：Max. ∅0.2mm Cycle time：25sec(loading/unloading included) Roundness：1.5μm Part name：Ball Piston Infeed grinding + auto-loading/unloading Material：SCM415 Removed stock：Max. ∅0.3mm Cycle time：26sec(loading/unloading included) Part name：Piston pin Thrufeed grinding Material：SCr21H Removed stock：Max. ∅0.13mm Feedrate：3m/min Roundness：1.2μm Standard accessories Tools and tool box Standard coolant tank Wheel extractor Diamond dresser Levelling bolts and blocks Grinding wheel with flange Regulating wheel with flange Spindle lubrication system w/ cooling fan Regulating wheel with flange Manual lubricator for guide ways (S model) Operation manual and part lists Thrufeed workrest Infeed workrest Control panel (S model) PLC controller + touch screen + control panel (NC model) FANUC 0i-TF CNC controller (CNC model) Optional accessories Vibration feeder auto. loading system Auto. unloading system for thrufeed grinding Forming attachment (forming plates) Coolant system with magnetic separator
