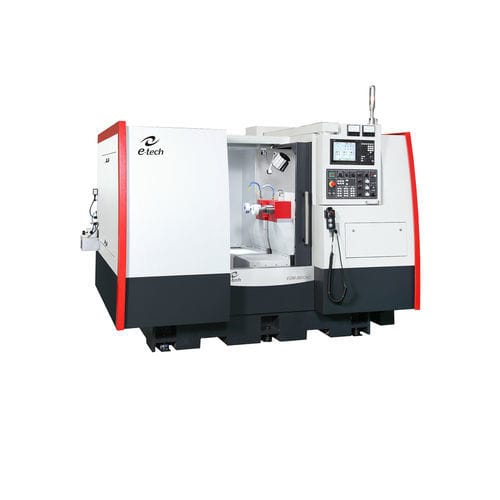

Internal cylindrical grinding machine EGM350

workpieceCNChigh-speed

With EGM high speed box type dressing function, it drastically reduces the wheel dressing time. This function allows the operator to input the specifications of the dresser and the geometric data of the profile to create the optimal dressing path. Standard accessories Control system: Mitsubishi M80 or FANUC 0i-TF with 10.4” screen Three-direction dresser stand x 1 set, diamond dresser x 3 pcs Wheel spindle surface detecting & crash control system (current indicator) Grease type grinding wheel spindle: (Select 2 pc from 8,000~50,000RPM) Hydraulic 8" 3-jaw chuck (w/ solid roary cylinder) MPG handwheel: EGI 2 Axes, EGM 3 Axes control X Axis Heidenhain linear scale (resolution 0.05 um) Electricity cabinet w/ heat exchanger Standard coolant tank 140L Automatic lubrication system 4-color indication signal light Levelling bolts and blocks Tools & tool box Electrical wiring diagram Operation manual & part lists Full-enclosed splash guard Workhead spindle A2-5 Electrical lubricator LED working light Optional accessories Mitsubishi controller (M80) dressing program: Radius / Taper / Multiple step / form shape Mitsubishi controller (M80) iGrind program Coolant system with magnetic separator & paper filter Coolant system with magnetic separator Coolant system with paper filter CE standard electrical cabinet Electrical cabinet air conditioner Grease type grinding wheel spindle Oil mist type grinding wheel spindle Workhead spindle A2-6 (65mm thru-hole) Manual strong type 7" 3-jaw chuck Oil & mist collecting system Spindle oil mist lubrication system ID auto. gauging device Diamond roller dressing device Dressing sensor system Soft-Jaw turning assembly
