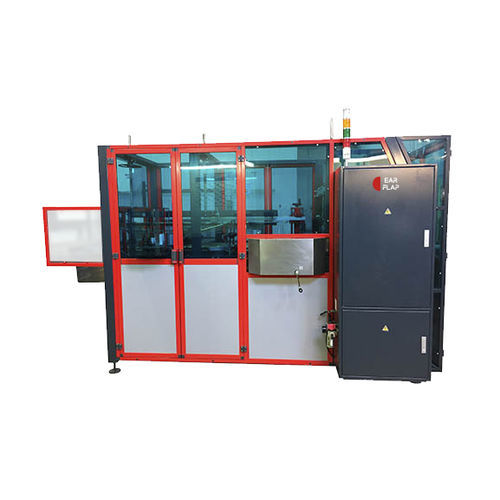

Automatic cardboard box/case erector BEM400

hot-melt glueadhesive tape

Automatic case former The basic structure consists of a magazine for folded boxes, a system to open them, close the lower flaps and seal the bottom. Then deliver the box assembled with the bottom closed and ready to introduce products vertically. The folded boxes located in the machine’s warehouse are taken by a vacuum suction cup system that opens them and places them in the forming position. The boxes are transported through the machine for a quick sealed of the bottom flaps. Standard machines Production (variable according to format) Up to 16 cases/min. Dimensional adjustment manual PLC control system Touch screen LCD Bottom flaps closing with adhesive tape Tape end detector with alarm Electric power 380 V 50 Hz Installed power 1,8 Kw Pneumatic installation 6 bar. Weight 1.100 Kg. Carton boxes Type: RSC, B1 Length: 250 to 410 mm.  Width: 165 to 300 mm.  Height: 330 to 640 mm It is not possible to combine all ten maximum dimensions Other dimensions on demand (it can add an extra cost) Standard machine variations Stainless steel 304 Bottom flaps closing with Hot Melt Flaps opener for automatic filling Automatic dimensional adjustment Other colors on demand (it can add an extra cost)
