Robotic palletizer RPE200

for boxeshandlingautomatic

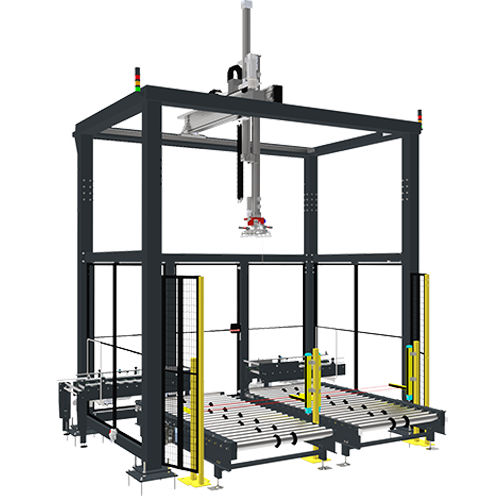

Automatic box palletizer. For two pallets at a time. Formed by a four-column support structure where a gripper moves in the three cartesian axis (x,z,y) with the possibility, according to the mosaic, of rotating around the vertical axis.  The tool is custom designed depending on material, dimensions and weight of the product, with suction cups, tweezers or other systems for handling objects of different sizes and shapes to the place them in different   positions, making a mosaic on the pallet. Standard machine 3-axis numerical control Fourth axis with 90º or 180º rotation Motorized roller conveyor or motorized belt, built-in production input. Metal grid protections Servomotors for axis drive Palletizing of two simultaneous loads Standard machine variations Automatic pallet dispenser / magazine Interlayer liner cardboard magazine Different types of products holding claw Manufacture in INOX Load dimensions: Heights and dimensions according to needs Weights of the load to be handled according to needs Pallet entry and exit with roller conveyor Photoelectric intangible barrier instead of doors
