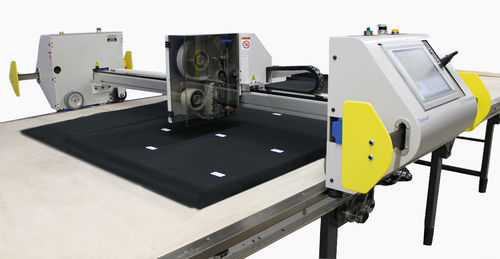

The Eastman SLS3 stack labeler fully automates the labeling process, reduces time, labor and eliminates costly errors that can occur with manual labeling. Small, self-adhesive labels replace large paper patterns or markers used for identification purposes. The SLS3 can interface with any CAD system and accurately print and affix pattern labels to the top layer of fabric stacks up to 4 inches (10.16cm) high. The stacks are then ready to move to a high-ply cutting system where they are cut and bundled.
• Prints and applies labels in one step
• Thermal print head
• Adjustable speed control
• Uses standard 1” x 2” or 1.25” x 0.5” labels
• Supports numbers 0-9; characters A-Z; +/-/./$/% and SPACE
• One of seven available barcode types may be selected (standard is CODE39)
• Accommodates 9 information fields in various font sizes
• Operates on all standard spreading tables
Additional Information
Width :
Up to 126 inches (3.20m)
Drive System :
Brushless Servo Motors
Maximum label stack height :
4 inches (10.16 cm)
Power (System Drive) :
220V, 1 ph, 20 amps
Disclaimer :
Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
