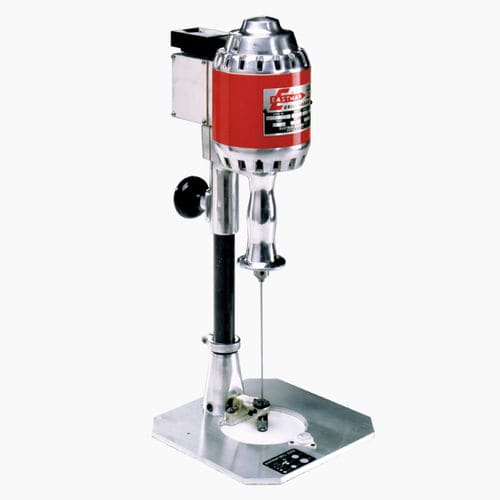

Drill press CD3H
electricfabric

drill press
drill press
Add to favorites
Compare this product

Characteristics

Type
column type
Power source
electric
Other characteristics
fabric
Voltage

110 V, 220 V

Description

The Hot Cloth drill leaves identifiable marks on loosely woven, or knit fabrics, where an ordinary drill mark would not be detected. The cloth drill fuses tightly woven synthetic materials, throughout the lay, thereby eliminating distortion in the marker. Description • Drills holes through numerous layers of fabric to indicate button holes, darts or other markings • Leaves identifiable marks on loosely woven materials or knit fabrics where an ordinary drill mark would not be detected • Fuses tightly woven synthetic materials throughout the lay, thereby eliminating distortion in the marker • Variable heat setting Additional Information Motors : 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz Horsepower : 0.20hp, 1ph 0.34hp, 3ph Weight : 18 lbs. (8.16 kg) Drill Tips Available : Standard: Taper Point Optional: Diamond Point, Open End Awl, Closed Awl, PTFE Coated Drill Diameter : English Metric 3/64 in 1.19mm 5/64 in 1.98mm 3/32 in 2.38mm 1/8 in 3.18mm 5/32 in 3.97mm 3/16 in 4.76mm 1/4 in 6.35mm 5/16 in 7.93mm 3/8 in 9.52mm Drilling Capacity : 6 in. (15.2cm) 8 in. (20.3cm) 11 in. (27.9cm) Disclaimer : All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
