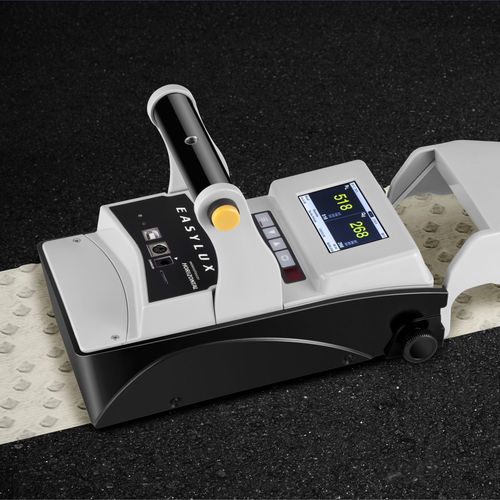

Day visibility retroreflectometer MINI

night visibilityfor horizontal pavement marking

The new MINI Horizontal measures the night visibility (RL), the Day Visibility (Qd), the visibility under wet (RL wet) and continuous wetting conditions (RL-2 rain) of road markings. With repeatability of 2% and reproducibility of 5% the new MINI can make around 8000 sequential measurements per battery charge. The MINI uses standard AA size batteries - easy to find and to replace at any time. MINI weights is less than 2.1 kg - with AA batteries - and the size is very compact (255 mm x 155 mm x 170 mm). Those values are nearly half of the old technology competitors. The MINI retroreflectometer for road markings meets all standards: •30-meter by ASTM E1710 and EN1436 for RL (88.76° / 1.05°). •ASTM E2302 and EN1436 for Qd (2.29° ). •ASTM E2177 and EN1436 for RLwet. •ASTM E2832 and EN1436 for Continuous Wetting RL-2 . •15-meter by NBR14723 (86.5° / 1.5° ). (optional) MINI uses LED technology, which makes the instrument almost maintenance-free and energy efficient. The innovative patent pending optical system is in accordance with CIE V( ʎ ) specifications, enabling accurate measuring of all colors and types of road markings - even profiled up to 15 mm.
