Stainless steel cable tray SP

galvanized steelglass fiber-reinforced polyesterfire-resistant

Product overview

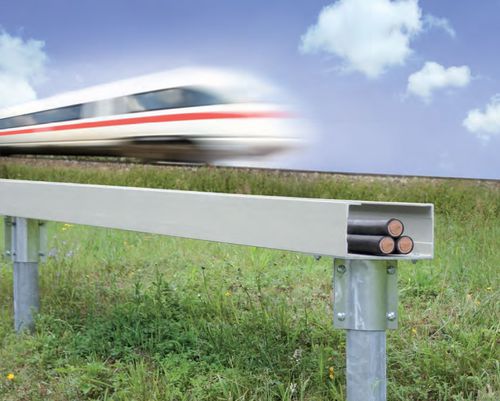

The GRP Ebo Systems cable trough SP is designed for installations in confined, inaccessible or uneven topographical areas. The solution combines GRP trays with a hot-dip galvanised (HDG) support and fixing system for a flexible, economical and low-weight installation. Standard lengths of 6 m, factory perforations and preassembled connectors enable rapid, single-person mounting.

Application areas

• Railways
• Trains
• Subways
• Other transportation infrastructures

System features and advantages - Material

• No corrosion
• Extremely insulating, no earthing required
• High dielectric strength
• Fire retardant: UL 94 V0
• Halogen free
• UV resistant
• Recyclable

System features and advantages - Mounting

• Low weight for easy handling
• Simple and fast installation
• Factory-drilled mounting holes
• Delivered in 6 m lengths
• Pre-assembled connectors for quick jointing
• Continuous installation permits variation of support spacing on site
• Height adjustable via variable pole lengths
• Adapted to irregular topography

Load resistance
High mechanical resistance complying with Federal Railway specifications and Mannesmann Arcor (Vodafone).

• Homologation number: EBA / 21AZ2 / 0029/9 dated 16.11.1999
• Approved by DB Systel GmbH: T.SVN 15 10/12 dated 27.05.2010

Compact system for elevation and cable support

• Cable trays with removable covers
• Self-standing trays up to 6 m
• Supporting poles in HDG material (hot-dip galvanised)
• Pole heads in HDG material
• Cover fixing with anti-theft Torx screws and cage nuts

Posts and post head fixing unit
The pole head design allows height adjustment and, on uneven ground, the swivel-mounted head permits adjustment in three directions. The head-fixing unit is one-piece for fast installation. All bolt fittings are standard M10x25. Oblong holes on the top of the post head allow positional correction during installation.

Covers
Overlapping covers with sleeves prevent water ingress. GRP covers are fixed with impregnable Torx-type screws and cage nuts using an overlapping sleeve principle.

Splice plates and connectors
U-shaped connectors in AISI 316 stainless steel secure tray junctions. Each 6 m length is delivered preassembled with a bolted junction on one side. Screws are round-headed to avoid cable damage. Leave a 6 mm gap between tray lengths and an 8 mm gap between tray covers during installation. Splice plates are pre-assembled in factory.

Divider
Dividers separate cables by function or voltage. They are retained at the tray bottom by cable weight and require no additional fixings during installation.

Assembling instructions (support spacing)

• For a SP system designed for 3 m support spacing: after installing the first post, install the second at approximately 2.25 m to align base holes.
• For a SP system designed for 6 m support spacing: after installing the first post, install the second at approximately 4.50 m to align base holes.

Technical specifications

• Product family / model: SP
• Material (tray & cover): GRP (glass-reinforced polyester)
• Support material: HDG (hot-dip galvanised) poles and heads
• Connector material: U-shaped connector in AISI 316 stainless steel
• Standard bolt fittings: M10x25
• Delivered length: 6 m
• Recommended gap between tray lengths: 6 mm
• Recommended gap between tray covers: 8 mm
• Cover fixing: Torx-type impregnable screw with cage nut
• Fire classification: UL 94 V0
• Electrical properties: extremely insulating, high dielectric strength (no earthing required)
• Environmental properties: halogen free, UV resistant, recyclable, no corrosion
• Homologation: EBA / 21AZ2 / 0029/9 (16.11.1999)
• Approval: DB Systel GmbH T.SVN 15 10/12 (27.05.2010)
