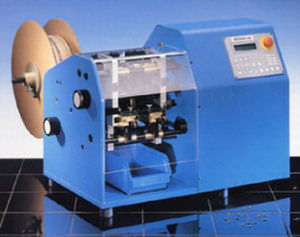

Axial component lead former E 400

This new progressive and universal to use machine is suited for the processing of axial components. Through manual operation it is possible to read a production-speed of circa 10.000 components per hour Motor-Drive For treating even more components the EBSOMAT 400 can be fitted with a motor-drive. Therewith you are able to increase the capacity on 14.000 compon­ents per hour. • No mechanical stress of components due to interchangeable cutting, bending and forming • Gradual adjusting of the cutting units realizes an „overbending“ of the wire-components by more than 90° respectly 180° • The bending components are supplied with a special roller design, so that the components can not be damaged by overbending • Pitches and length of the connecting wires can be adjusted gradually • Already the standard tooling allows the processing of the components either in horizontal or vertical mode • Gradual adjusting of speed Loose Feed Option: – Components are automatically aligned, separated and moved into the transport mechanism for processing. – Easy to set up and operate. – Simple walking-beam design is open and accessible. – Up to 3.000 pc/h
