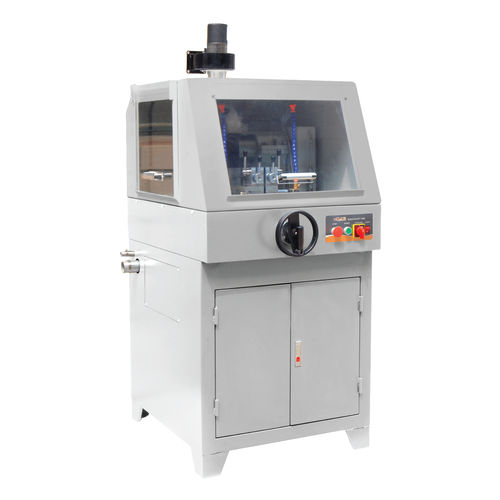

Metallographic cutting machine EASYCUT series

rotary bladefor metalsample

EASYCUT-100 Cutting capacity Max. ø 100mm Cutting disc dimensions Max. ø 350 x ø 32mm Cutting depth 100mm Working chamber LxW 680x780mm EASYCUT-120 Cutting capacity Max. ø 100mm Cutting disc dimensions Max. ø 350 x ø 32mm Cutting depth 120mm Working chamber LxW 680x780mm Features >>3 models; Cutting depth 100mm and 120mm >>Manual floor-type multifunctional metallographic cutting machine, used for cutting irregular metallographic samples >>Cutting table provided with T-slots to assemble different vices in addition to a double quick climping system >>Built-in safety features, internal safety device allows the operation only if the cutting chamber is closed >>Cutting chamber equipped with LED illumination and ventilation system in order to increase the visibility during the process. >>Supplied with cooling system to avoid the sample over heating >>This series is suitable for quality control, scientific research institutes and universities. Standard accessoriesClamp for metallic material, such as steel, iron, aluminium, copper, etc.; cooling tank with pipes; spanners 36mm-46mm; cutting disc ø 380x2.8xø32
