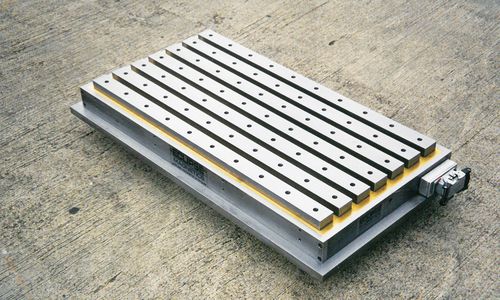

Electro-permanent magnetic chuck SM series

rectangularfor milling

The ultimate permanent electro-magnetic chuck for heavy duty milling applications. Supermill is constructed from solid steel and brass; it incorporates high intensity neodymium magnets to ensure an extremely robust, high performance clamping system. It is ideal for steel plate from 15mm to 300mm thick. Supermill outperforms traditional clamping systems and other milling chucks, offering several process advantages. • Instantaneous 10 tonnes ft² of clamping force • Failsafe magnetic technology - maintains hold even if power is cut • Maximises feed rates - no time wasted fitting and positioning clamps • Uniform clamping - eliminates vibration • 5 side access to the workpiece • Push button remote control • Supplied with pole extensions Supermill cuts cycle times by 70% This actual example shows how Supermill can make an enormous difference to production efficiency.
