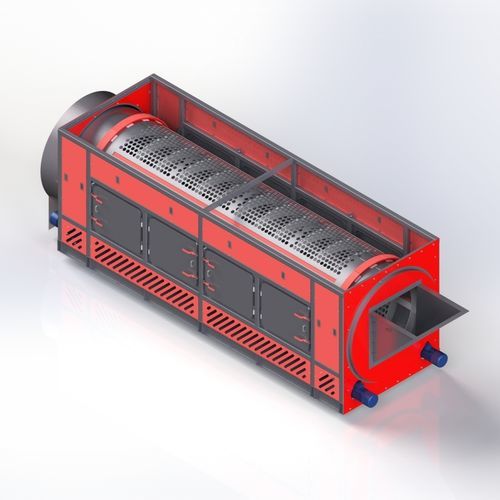

Recycling screening unit EcoSpectrum SkyScreen'8
sortingmobiledrum

Add to favorites

Compare this product

Go to the Eco-Spectrum LLC website for more information

Characteristics

Applications

for recycling, sorting

Type

mobile, drum

Material

for bulk materials, for waste

Other characteristics

heavy-duty, 2-deck, 3-deck, self-cleaning

Weight

Max.: 10,000 kg
(22,046 lb)

Min.: 9,000 kg
(19,842 lb)

Screening surface

Max.: 50 m²
(538.2 ft²)

Min.: 40 m²
(430.6 ft²)

Engine power

Max.: 22 kW
(29.91 hp)

Min.: 20 kW
(27.19 hp)

Noise level

Max.: 60 dB

Min.: 50 dB

Description

Trommel screen are an integral part of waste sorting plants, on which the efficiency of the entire complex depends. Trommel screen are used in a wide range, both for separating the organic fraction and for separating material by size. Depending on the application, Eco-Spectrum produce a two sizes of trommel, 8 and 12 meters , models EcoSpectrum SkyScreen'8 and EcoSpectrum SkyScreen'12. Characteristics: • Performance, T/h: 20-30; • Length, mm: 7300; • Working section length, mm: 5600 • Trommel diameter, mm: 2100 • Trommel nominal speed rate, r.p.m.: 8-15 • Trommel pitch angle, degrees : 0 • Material handling inside of trommel: auger conveyor • Diameter of cell, mm: 70 • Driving power, kW: 4x5,5 • Material of trommel: steel 09Г2С • Overall dimensions, mm: 2551х2650х9174 • Transportation: 1 Euro Trailer • Weight, t: 10
