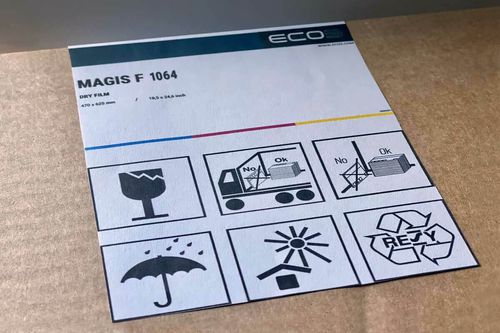

Laminating film MAGIS F 1064

laminatedplasticfor labels

MAGIS F 1064 dry film is compatible with a wide range of 1064 nm digital imagers for flexo printing. It is optimized for 1-to-1 dot transfer via lamination on MAGIS P-Eco and MAGIS P-L plates. This dry film lamination (DFL) results in perfectly shaped flat-top dots with maximum grey level support and a dot range from 1 to 99% at 175 lpi with reproduced dots of 20µm up to a level of 0.3%. Combined MAGIS F 1064 and MAGIS P-Eco/P-L provide a superb quality level for printed labels and flexible products. Premium image quality MAGIS F 1064 dry film supports resolutions up to 9600 dpi, offering a 1:1 dot transfer and maintaining a dot range from 1 to 99%. Daylight safe This dry film can be handled in daylight and does not require a darkroom or UV protection. No complex processing No processing and chemicals are needed once the ablative film has been imaged on a MAGIS DI imager or other compatible infrared laser system. Low energy requirements MAGIS F film requires less energy than comparable carbon-based LAM products, which means throughput can be much higher. Easy handling The sturdy sheets of film are easy to handle and offer excellent dimensional stability. Specifications Film type Thermal sensitive image able layer tuned for 1064 nm digital imaging Resolution High resolution addressable clear film for graphic applications Visual appearance Green Imaging requirements Low energy required (up to 4 times lower than LAMS layers) Pixel addressability 2400 - 4800 dpi (8000 or 9600 dpi optional) Stability 175µm dimensional stable PET base Process To be used for Dry Film Lamination (DFL) using MAGIS P-Eco and MAGIS P-L plates Density UV blocking density : >= UV-D 4.00
