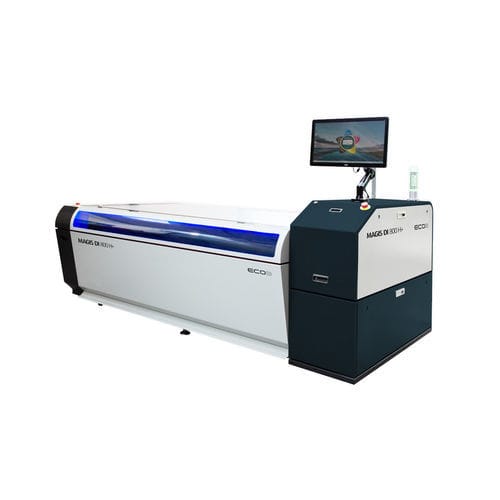

Thermal imaging system MAGIS DI 800 H+

MAGIS DI is a high-resolution and high-speed imaging system used to image MAGIS F dry film. The low energy required for this imaging process extends the laser's lifespan and reduces maintenance and service costs. MAGIS DI is also a highly flexible HDI imaging system developed for superior-quality plate production. It supports media sizes up to 1,270 x 2,032 mm. The MAGIS DI 800 H+ features a slide-back lid for easy, semi-automatic loading of a wide variety of materials. Multiple media options MAGIS DI 800 H+ meets your plate-making requirements for a wide range of presses. It supports MAGIS F 830 dry film as well as flexo and letterpress plates. High resolution support This imager is designed for high-resolution label printing. It can optionally support resolutions up to 9,600 dpi. Easy mounting There is no need to use tape to secure plates to the imaging drum. Flexible connectivity The MAGIS DI 800 H+ includes a front-end to import 1-bit TIFF data, which all the major workflow systems on the market can generate. Supports Amfortis PlateAssembler Amfortis PlateAssembler can combine multiple labels for output on a single film or plate. Optimized for MAGIS F dry film The lower energy requirement of MAGIS F dry film helps increase imaging speed and extends the lifetime of the laser. Min. media size 200 x 350 mm (8 x14") Max. media size 1,270 x 2,032 mm (50 x 80”) Max. MAGIS film size 1,274 x 2,045 mm (50.5 x 80.5”) Supported materials Thermal dry film, ablative film, digital flexo plates, polyester letterpress plates Supported media thicknesses 0.11 to 6.35 mm Imaging resolutions 2,400 & 4,800 dpi (8,000 or 9,600 dpi optional)
