Cleaning oven

powder coatingchamberelectric

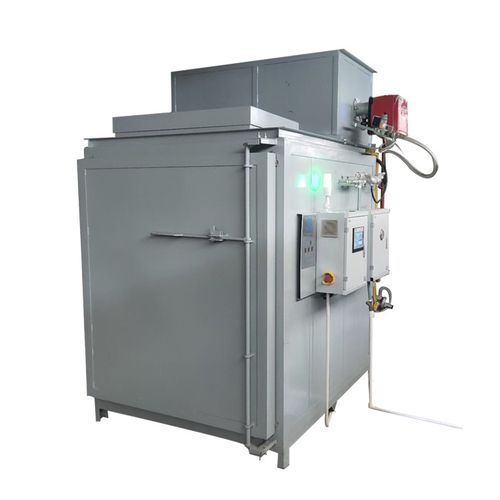

Burn Off Ovens efficiently strip off powder coating, paint, epoxy, grease, oil, rubber and other organic materials from metals. Save the cleaning time and cost. Extend the parts lifetime. Burn off ovens, also called heat cleaning ovens are widely used in the coatings, fibers, electric motors and plastics industry. The burn off ovens has two relatively independent heating systems as well as temperature and smog control system. In the first heating system, the fixtures are heated to a set temperature from 250 to 420 celcuis degree without direct flame impingment. In this process, the organic coatings on the surface of fixtures are gradually decomposed into smoke and ash. The smoke generated by the first chamber into the second combustion chamber is fully burned at 600-800 celcuis degree, coverting into water vapor and air, which are discharged into the atmosphere by the exhaust stack.Parts before and after processing by burn off oven The coating on the surface of metal parts turns into ash after processed by high temperature in one cycle. Some ash falls on the bottom of the furnace.The remaining ash on the surface of metal parts can be cleaned by tapping lightly or with a water gun.
